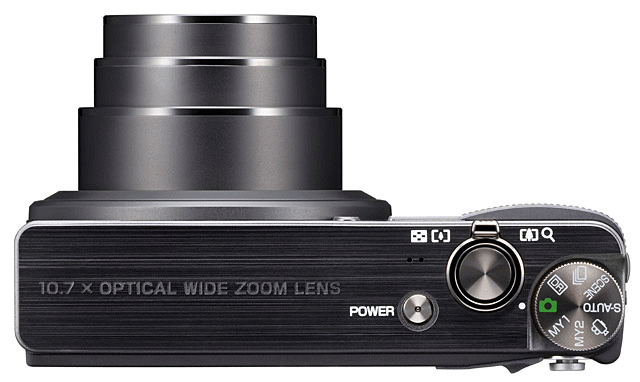

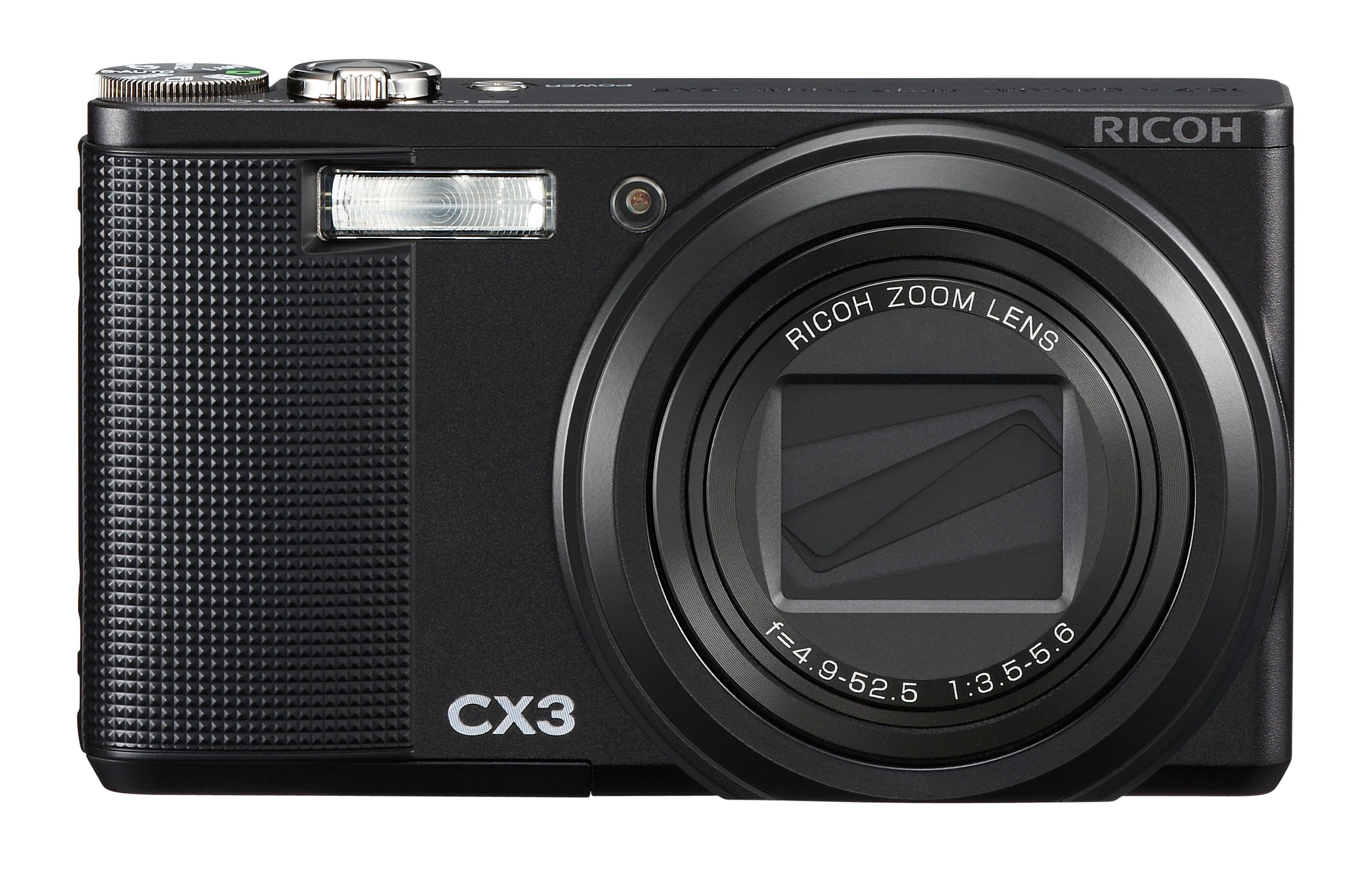

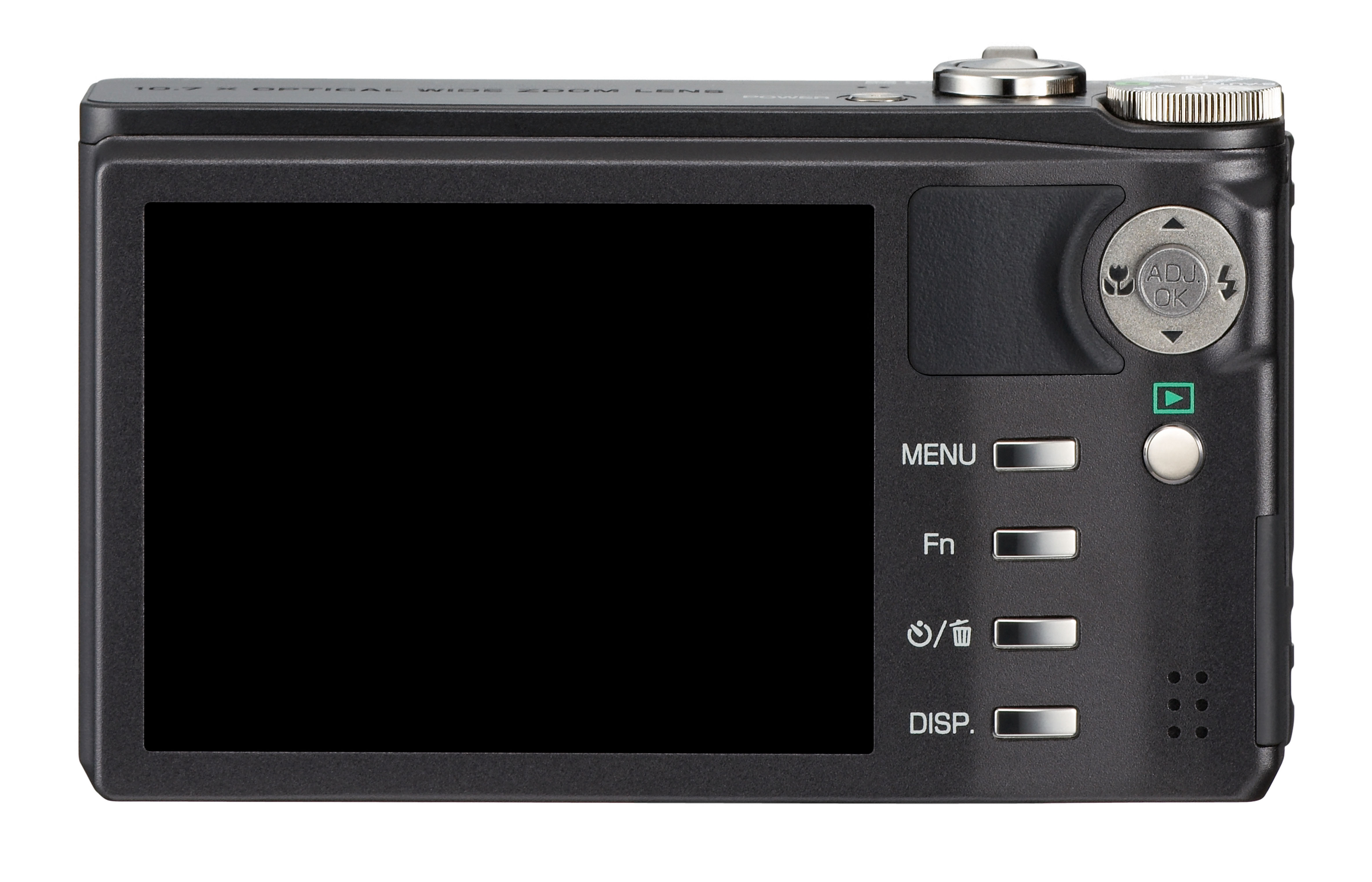

| CX3
Major Specifications |
| Items |
Specifications |
| No.
of Effective Pixels (Camera) |
Approximately
10.00 million pixels |
| Image
Sensor |
1/2.3-inch
CMOS (total pixels: approx. 10.60 million pixels) |
| Lens |
Focal
length |
f=4.9-52.5mm
(Equivalent to 28-300 mm for 35 mm film cameras. With Step Zoom
set, focal lengths can be fixed at eight steps: 28 mm, 35 mm, 50
mm, 85 mm, 105 mm, 135 mm, 200 mm, and 300 mm) |
| F-aperture |
F3.5
(Wide) - F5.6 (Telephoto) |
Shooting
Distance |
Normal
shooting: Approx. 30 cm - infinity (Wide), approx. 1.5 m -
infinity (Telephoto) (from the front of the lens)
Macro: Approx. 1 cm - infinity (Wide), approx. 28 cm - infinity
(Telephoto), approx. 1 cm - infinity (Zoom Macro) (from the
front of the lens) |
| Lens
Construction |
10
elements in 7 groups (aspheric lens: 4 elements and 5 surfaces) |
| Zoom
Magnification |
Optical:
10.7x zoom (equivalent to 28-300 mm focal length for 35 mm
cameras)
Digital: 4.8x up to 51.4x (equivalent to 1440 mm) when used with
optical zoom
Auto Resize: 5.7x*1 up to 61.0x*1
(equivalent to 1710 mm) when used with optical zoom |
| Focus
Mode |
Multi
AF (contrast AF method) / Spot AF (contrast AF method) /
Face-Priority AF / Continuous AF / Multi-target AF / MF / Snap /
∞ (with AF Auxiliary Light) |
| Motion
Blur Reduction |
sensor shift method image stabilizer |
| Shutter
Speed*2 |
Still
image |
8,
4, 2, 1 - 1/2000 sec. |
| Movie |
1/30
- 1/2000 sec. |
| Continuous
Shooting |
Continuous
shooting speed*3 |
approx.5
frames/sec. (10M 4:3F shooting time; shooting speed after 12
pictures is approx. 3 frames/sec.) |
| Continuous
shooting capacity |
999
pictures |
| Exposure
Control |
Exposure
Metering Mode |
Multi
Light Metering (256 segments) / Centre-weighted Light Metering /
Spot Metering |
| Exposure
Mode |
Program
AE |
Exposure
Compensation |
Manual
Exposure Compensation +/-2.0EV (1/3EV Steps), Auto Bracket
Function (-0.5EV, ±0, +0.5EV) |
| ISO
Sensitivity (Standard Output Sensitivity) |
AUTO,
ISO80 / ISO100 / ISO200 / ISO400 / ISO800 / ISO1600 / ISO3200 |
| White
Balance Mode |
Auto
/ Multi-pattern Auto / Outdoors / Cloudy / Incandescent Lamp /
Incandescent Lamp 2 / Fluorescent Lamp / Manual Settings, White
balance bracket function |
| Flash |
Flash
Mode |
Auto
flash (fires automatically in low-light conditions and when the
subject is backlit) / Red-eye Flash / Flash On / Flash Synchro.
/ Flash Off |
| Built-in
flash range |
Approx.
20 cm - 4.0 m (Wide), approx. 28 cm - 4.0 m (Telephoto) (ISO
Auto/ISO Auto Maximum 1600, from the front of the lens) |
| Flash
compensation |
+/-2.0EV
(1/3EV Steps) |
| Monitor |
3.0-inch
Transparent LCD (approx. 920,000 dots) |
| Shooting
Mode |
Auto
shooting mode / Scene auto mode / Dynamic range double shot mode
/ Continuous mode / Scene mode (Portrait / Sports / Pets /
Night. Port. / Nightscape / Miniaturize / Landscape / High Sens
/ High Contrast B&W / Discreet Mode / Zoom Macro / Text Mode
/ Skew Correct Mode) / My settings mode / Movie mode |
| Picture
Quality Mode*4 |
F
(Fine) / N (Normal) |
| No.
of Pixels Recorded |
Still
image/multi-picture |
3648
x 2736, 3648 x 2432, 2736 x 2736, 3648 x 2048, 2592 x 1944, 2048
x 1536, 1728 x 1296 (multi-picture only), 1280 x 960, 640 x 480 |
| Movie*5 |
1280
x 720, 640 x 480, 320 x 240 |
| Text |
3648
x 2736, 2048 x 1536 |
| Recording
Media |
SD
memory card
SDHC memory card (up to 32 GB), Internal memory (approx. 88 MB) |
| Recording
File Format |
Still
Image |
JPEG(Exif
ver.2.21)*6 |
| Multi-picture |
CIPA
DC-007-2009 Multi-Picture Format |
| Movie |
AVI
(Open DML Motion JPEG Format compliant) |
| Compression
method |
JPEG
Baseline method compliant |
| Other
Major Shooting Functions |
Continuous,
Self-Timer (operation time: approx. 10 sec. / approx. 2 sec. /
custom self-timer), Interval Timer (Shooting interval: 5 sec. -
1 hour (5 sec. steps), Colour Bracket function, Focus Bracket
function, AE/AF Target Shift, Histogram, Grid Guide, Electronic
Level |
| Other
Major Playback Functions |
Grid
View, Enlarged Display (maximum 16x), Resize, Level
Compensation, White Balance Compensation, Trim, Flag, Slideshow,
DPOF Setting |
| Interface |
USB
2.0 (High-Speed USB) Mini-B, Mass storage compatible*7/
AV Out 1.0Vp-p (75Ω) |
| Video
Signal Format |
NTSC,
PAL switchable |
| Power
Supply |
Rechargeable
Battery: DB-100 x1 |
| Battery
Consumption*8 |
Based
on CIPA Standard: Using the DB-100, approx. 310 pictures (when
LCD Dim is on)*9 |
| External
Dimensions |
101.5
mm (W) x 58.3 mm (H) x 29.4 mm (D) (according to CIPA
guidelines) |
| Weight |
Approx.
206 g (including the supplied battery and SD memory card)
Approx. 185 g (body only) |
| Operating
Temperature Range |
0°C
- 40°C |
