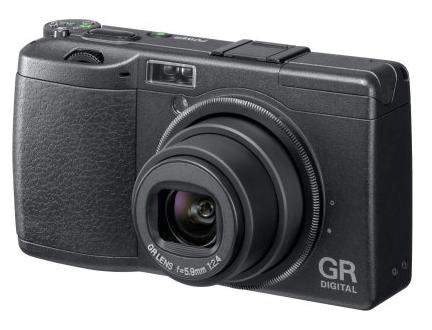

Ricoh GR Digital
OUT OF STOCK
- Newly Developed GR Lens Provides High
Resolution and resolving power
- Image Processing via GR Engine Maximizes
Lens Performance
- Slim, Compact Design
- Functionally Aesthetic Design Delivers
High Quality and Ease Of use
- The Camera Itself is Simple, And Highly
Expandable to Meet a Wide Range of Needs
- Short Photo Interval of 1.7 Seconds
- Built-in Large, High Resolution LCD with
100% View
- Images can be captured in various
combinations of resolution and compression
- An aspect ratio of 3:2 can be selected
- Manual, Program, Program shift AE and
Aperture Priority modes
- Three metering modes are available
- A sophisticated 9-point AF system

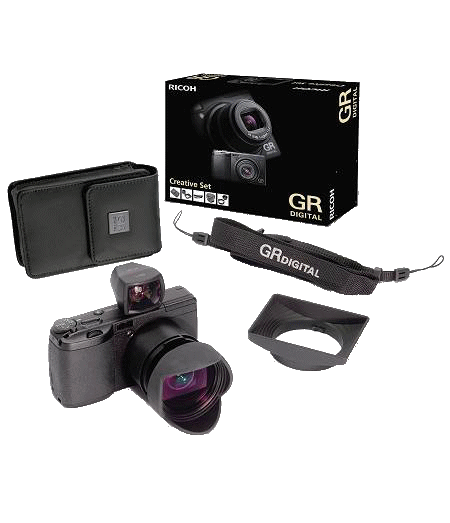

Ricoh GR Digital Creative Camera Kit
| The GR Digital is a newly
developed professional-grade high-resolution compact digital camera. In
addition to a CCD with 8,130,000 effective pixels, the new digital camera
boasts superb resolution through a newly developed high-performance lens,
image-processing algorithms, and other innovations, as well as low noise
and low chromatic aberration.
The new GR Digital inherits the superb
image quality that made the award winning GR Series (first launched in
1996) of 35mm compact film cameras so popular, as well as the depictive
performance to satisfy professional photographers, distilled into a
compact 25-mm thin body.
With a high-quality feel and superb
expandability, this is the perfect tool for both professional
photographers and advanced amateurs.
When planning the GR Digital, Ricoh’s
engineers began by identifying the elements needed to provide the high
picture quality demanded by discerning photographers. After extensive
tests and research, Ricoh placed special emphasis on resolution, noise
level, colour aberration correction, colour reproduction, tone, and
distortion characteristics. In order to achieve extremely high levels in
each of these areas, Ricoh gave the GR Digital a CCD with 8,130,000
effective pixels, and also developed two key components: (1) a F2.4 fixed
focal length GR lens with f = 5.9 mm (28 mm converted to 35 mm format
camera) having high resolution and depictive power; and (2) a new GR
Engine image-processing system featuring natural composition and rich,
fine gradations while further lowering noise in all images.
These key components in turn translate
into a high Modulation Transfer Function (MTF) rating for the central area
of the image as well as the edges. MTF is a measure of contrast and
resolution, and one of the most widely used standards for evaluating image
quality. The GR Digital has the descriptive power to show each hair on a
person's head, with superb reproductive capability all the way into the
corners of the picture. The GR Digital’s images also reduce noise,
giving greater continuity in dark areas, reproduces natural tones and
gradations, and reduces blurring and distortion.
Ricoh launched their first digital camera
– the Ricoh DC- in 1995. The Ricoh DC-1 was the world's first digital
camera to support video. Since then, Ricoh have remained at the forefront
of digital camera technology. Ricoh’s leading edge technologies have
seen many breakthroughs with such outstanding features as: 1cm macro,
wide-angle high quality optical zoom lenses, ultra fast response times
(start-up and shutter release lag) and unique linking of communications
and GPS support functions.
|
| Item |
Description |
| Imaging
device |
1/1.8
primary color CCD with 8,130,000 effective pixels (total pixels:
8,300,000) |
| Lens |
| <Focal
distance> |
f=5.9
mm (28 mm converted to 35mm format camera) |
| <Brightness
(F)> |
F
2.4 to F 11*1 |
| <Lens
composition> |
6
elements; 5 groups: 7 diaphragm blades |
|
| Digital
zoom |
4.0x |
| Shooting
range |
About
0.3 m to infinity from lens tip |
| Macro
shooting range |
About
0.015 m to infinity from lens tip |
| Shutter |
<Stil>
180, 120, 60, 30, 15, 8, 4, 2, 1 - 1/2,000 sec.
<Video> 1/30 -1/2,000 sec. |
| Pixels |
| <Still> |
3,264
x 2,448; 3,264 x 2,176; 2,592 x 1,944; 2,048 x 1,536;
1,280 x 960; 640 x 480 |
| <Text> |
3,264
x 2,448; 2,048 x 1,536 |
| <Video> |
320
x 240; 160 x 120 |
|
| Picture-quality
modes*2 |
F
(Fine)/N (Normal)/RAW*3 |
| ISO
sensitivity*4 |
AUTO;
64; 100; 200; 400; 800; 1,600 |
| Flash |
Auto/
redeye suppression/ force flash/ slow synchro/ flash off Throw
distance*5 approx. 0.2 to 3 m |
| Focus |
Autofocus/
manual focus/ snap/ infinity (AF supplemental light also
available) |
| Exposure
adjustment |
TTL-CCD
photometric system: multi (256 div.)/ center focus photometry/
spot photometry |
| Exposure
compensation |
Manual
correction (+2.0 to -2.0 EV 1/3 EV steps); auto bracket feature
(-0.5 EV; ±0; +0.5 EV) |
| White
balance |
Auto;
fixed (Daylight/ Overcast/ Tungsten Light/ fluorescent light/
manual/ advanced); white balance bracket feature |
| Recording
media |
SD
memory card (3.3V 32/ 64/ 128/ 256/ 512MB/ 1GB); multimedia
card; built-in memory (26 MB) |
| Storage
capacity*6 (built-in 26 MB storage) |
| <Still> |
3,264
x 2,448: RAW: 1/F: 8/ N: 14; 3,264 x 2,176: RAW: 1/F: 9;
2,592 x 1,944: N: 22; 2,048 x 1,536: N: 36; 1,280 x 960:
N: 63; 640 x 480: N: 277 |
|
| Storage
time (built-in 26 MB storage) |
| <Video> |
320
x 240: 39 sec (30 frames/sec); 160 x 120: 2 min 26 sec
(30 frames/sec)*7 |
| <Audio> |
56
min 45 sec*8 |
|
| Storage
data capacity |
| <Still> |
3,264
x 2,448: RAW: about 11.52 MB/screen; F: about 2.83
MB/screen; N: 1.63 MB/screen 3,264 x 2,176: RAW: about
10.25 MB/screen; F: about 2.57 MB/screen; 2,592 x 1,944:
N: about 1.03 MB/screen; 2,048 x 1,536: N: about 672
KB/screen;1,280 x 960; N: about 356 KB/screen; 640 x
480: N: about 83KB/screen |
|
| Recording
modes |
(Still, Continuous, S-Continuous, M-Continuous),
Program shift/ Aperture-Priority/ Manual exposure, Scene (Text,
Sound), Motion |
| Recording
formats |
| <Still> |
compression:
JPEG*9 (Exif ver. 2.21); RAW(DNG)*10 |
| <Text> |
TIFF
(MMR format/ITU-T.6) |
| <Video> |
AVI
(Open DML Motion JPEG format compliant) |
| <Audio> |
WAV
(Exif ver. 2.21 μ law) |
|
| LCD
monitor |
2.5
inch low-noise polysilicon TFT LCD; about 210,000 pixels |
| Self
timer |
Operating
time: about 10 sec/ 2 sec |
| Interval
timer |
Shooting
interval: 5 sec. to 3 hours (units of 5 sec.)*11 |
| PC
interface |
USB
2.0; Ricoh original mass storage selectable*12 |
| AUDIO/
VIDEO interface |
Audio
OUT/ Video OUT |
| Video
signal format |
Switch
between NTSC & PAL |
| Dimensions |
107.0
x 25.0 x 58.0 mm (WxDxH); does not include protruding parts |
| Weight |
About
170 g (not including battery/ SD memory card/ strap); supplied
parts: 30g (battery/ strap) |
| Power |
1
Rechargeable battery (DB-60); AC adapter (AC-4c option); 2 AAA
alkaline dry-cell batteries
2 AAA Oxyride dry-cell batteries; 2 AAA nickel-hydrogen dry-cell
batteries |
Shooting
capacity *13 |
| CIPA-standard
compliant |
|
![]() |
|
DB-60
used: about 250; When AAA alkaline dry-cell battery
used: about 30*14 |
|
| Temp.
range for use |
0°C
to 40°C |
|
| *1: |
If
mode dial is set to ND filter is used in F7.1-F11 range. |
| *2: |
Image-quality
modes that can be set depend on the image size. |
| *3: |
Simultaneous
storage with Fine mode (JPEG). |
| *4: |
ISO
1600 cannot be chosen when shooting in the RAW mode. |
| *5: |
Throw
distance when ISO AUTO set. |
| *6: |
General
estimate of number of still images stored. |
| *7: |
A
1GB SD card can record for a maximum of 88 minutes 31 seconds. |
| *8: |
A
1GB SD card can record for a maximum of 2,063 minutes 25
seconds. |
| *9: |
DCF
compliant; DPOF supported. DCF is an abbreviation for Design
rule for Camera File system standardized by JEITA. (full
compatibility between devices not guaranteed). |
| *10: |
DNG
is a particular RAW format advocated by Adobe systems
incorporated. |
| *11: |
With
Flash off. |
| *12: |
Mass
storage supports Windows Me/2000/XP and Mac OS 9/X 10.2-10.4.
Windows 98/98SE and Mac OS 8.6 not supported. |
| *13: |
The
numbers of photos that can be taken were measured using
conditions compliant with the CIPA standard. They are only given
as a rough guide. |
| *14: |
The
actual number of photos that can be taken will differ greatly
depending on conditions of use and battery manufacturer. |
|
|
