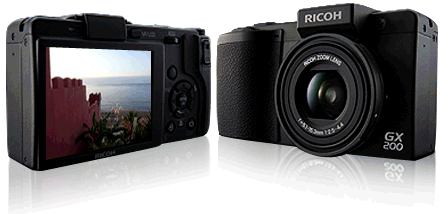

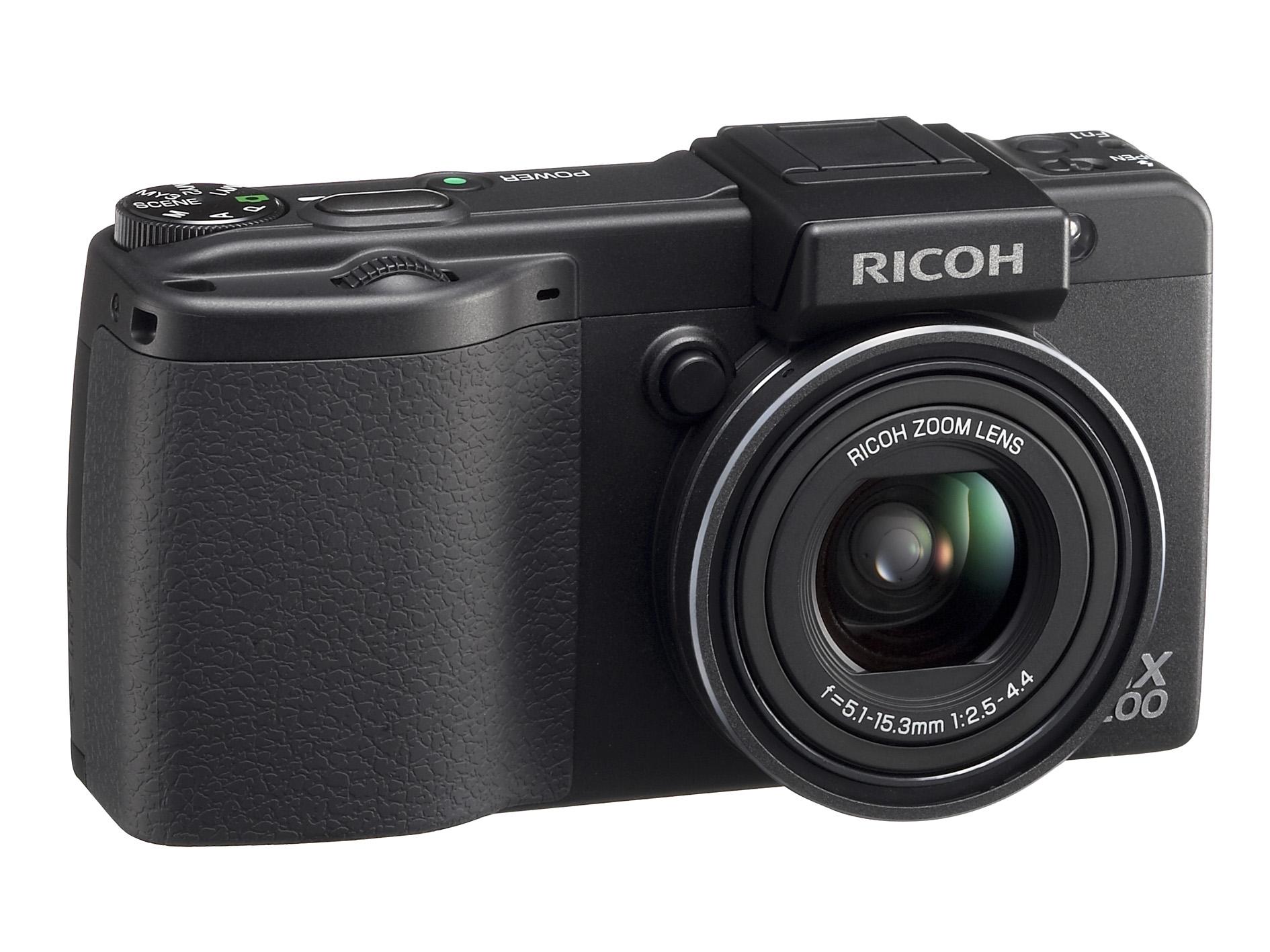

Ricoh GX200 Digital Camera +VF1 Kit
ฃ339
Description
- 24 mm wide-angle optical
3x zoom
- effective 12 mega-pixel
CCD
- Vibration
Correction Function
- 1cm macro
- High-sensitivity
ISO 1600
- 2.7
inch 460,000 dots LCD
- Long
drive 350 shot
Super
wide-angle high performance 24-72 mm/f2.5 (wide) f4.4(telephoto) zoom lens
with superb optical performance comparing favourably to SLR interchangeable
lenses. Attach the unique tilting electronic viewfinder, linked to the focal
distance to zoom and frame your subject with the feel of an SLR or medium format
camera and add GX200 host of versatile accessories to enter a wider realm of
creative photography. For the photographer who knows the depth and joy of
photographic expression, the GX200 transcends the limitations of a compact
camera.
Evolved
24-72 mm zoom lens for controlling flare.
The
optical 3x super-wide zoom lens, effectively controls curvature aberration,
boasts superior resolution and high contrast.
It is the "eye" of the GX200, achieving both compactness and depiction
ability at a high level by employing aspheric, special low-dispersion glass and
high refractive index low-dispersion lens elements.
Through
fine tuning, it controls flare that can occur when shooting backlit subjects
compared to GX100.
Superior
optical performance is exhibited regardless of lighting conditions and focal
length.
Specifications
| Items
|
Specifications
|
| Number
of Effective Pixels (Camera) |
Approximately
12.1 million pixels |
| Image
Sensor |
1/1.7"
primary-colour CCD (total pixels: approx. 12.4 million) |
| Lens |
Focal
length |
f=5.1
to 15.3mm
(35mm film equivalent focal length 24 to 72mm. With Step
Zoom set, the following fixed focal lengths possible:
24mm, 28mm, 35mm, 50mm, 72mm) |
| F-aperture |
F2.5
(Wide) to F4.4 (telephoto) |
Shooting
Distance |
Macro
shooting: Approx. 1.0cm to infinity (wide-angle),
approx. 4.0cm to infinity (telephoto), approx. 1.0cm to
infinity (zoom macro) (from the front of the lens) |
| Lens
Construction |
11
elements in 7 groups |
| Zoom
Magnification |
Optical
zoom: 3.0 times (35mm film equivalent focal length 24 to
72mm)
Digital zoom: 4.0 times, up to 12 times (288mm
equivalent) in combination with optical zoom Auto resize
zoom: 6.3 times, up to 18.9 times (450mm equivalent) in
combination with optical zoom (VGA image) |
| Focus
Modes |
Multi
AF (CCD method)/Spot AF (CCD method)/Manual
Focus/Snap/Infinity (with focus lock and AF aux. light) |
| Motion
Blur Reduction |
CCD
shift method image stabilizer |
| Shutter
Speed*1 |
Still
image |
180,
120, 60, 30, 15, 8, 4, 2, 1~1/2000 seconds |
| Movie |
1/30
to 1/2000 seconds |
| Exposure
Adjustment |
Exposure
Metering Mode |
Multi
Light Metering (256 segments)/Center-weighted Light
Metering/Spot Metering (TTL-CCD metering, AE lock
available) |
Exposure
Mode |
Program
AE/Aperture Priority AE/Manual Exposure |
Exposure
Compensation |
Manual
Exposure Compensation (+2.0 to -2.0 EV in 1/3 EV steps),
Auto Bracket Function (-0.5 EV, ฑ0, +0.5 EV /-0.3 EV,
ฑ0, +0.3 EV) |
| ISO
Sensitivity (Standard Output Sensitivity) |
AUTO/AUTO-HI/ISO64/100/200/400/800/1600 |
| White
Balance Mode |
Auto/Outdoors/Cloudy/Incandescent
Lamp/Fluorescent Lamp/Manual Settings/Detail, White
balance bracket function |
| Flash |
Built-in
Flash Mode |
Auto
(during low light and when subject is backlit)/Red-eye
Flash/Flash On/Flash Synchro/Manual Flash (Full, 1/1.4,
1/2, 1/2.8, 1/4, 1/5.6, 1/8, 1/11, 1/16, 1/22,
1/32)/Flash Off |
| Built-in
Flash Range |
Approx.
20cm to 5.0m (wide-angle), approx. 15cm to 3.0m
(telephoto) (ISO AUTO/ISO 400, from the front of the
lens) |
| Flash
Compensation |
ฑ2.0
EV (1/3 EV steps) |
| Picture
Display |
2.7"
Transparent Amorphous Silicon TFT LCD, approx. 460,000
dots |
| Shooting
Mode |
Auto
Shooting Mode/Program Shift Mode/Aperture Priority
Mode/Manual Exposure Mode/Scene Mode
(Movie/Portrait/Sports/Landscape/ Nightscape/Zoom
Macro/Skew Correct Mode/Text Mode)/My Settings Mode |
| Picture
Quality Mode *2 |
F(Fine)/N
(Normal)/RAW (DNG file format)*3 |
| Number
of Recorded Pixels |
Still
image |
[4:3]4000ื3000,
3264ื2448, 2592ื1944, 2048ื1536, 1280ื960, 640ื480
[3:2] 3984ื2656
[1:1] 2992ื2992
|
| Movie |
640
x 480, 320 x 240 |
| Text |
4000
x 3000, 2048 x 1536 |
| Recording
Media |
SD
memory card, SDHC memory card (up to 16 GB), Internal
Memory (approx. 54 MB) |
| Storage
Capacity/Time*4 (internal memory 54 MB) |
Still
Image |
4000ื3000
RAW: 2 pictures, F: 11 pictures, N: 20 pictures,
3984ื2656 RAW: 2 pictures, F: 13 pictures, N: 23
pictures,
2992ื2992 RAW: 3 pictures, F: 15 pictures, N: 27
pictures,
3264ื2448 N: 30 pictures, 2592ื1944 N: 48 pictures,
2048ื1536 N: 74 pictures, 1280ื960 N: 133 pictures,
640ื480 N: 497 pictures |
| Movie*5 |
640ื480
(30 frames/sec.): 41 sec., 640ื480 (15 frames/sec.): 1
min. 22 sec.,320ื240 (30 frames/sec.): 1 min. 22 sec.,
320ื240 (15 frames/sec.): 2 min. 40sec. |
| Recording
File Format |
Still
Image |
JPEG(Exif
ver2.21)*6,RAW(DNG) |
| Movie |
AVI
(Open DML Motion JPEG format compliant) |
| Other
Major Shooting Functions |
Cont/S-Cont/M-Cont,
Self-timer (operation time: approx. 10 sec./2 sec.),
Interval Shooting (shooting interval: 5 sec. to 3 hr.,
in increments of 5 sec.)*7, Colour Bracket,
B&W (TE), Noise Reduction, Histogram, Grid Guide,
Electronic Level, Hot Shoe |
| Other
Major Playback Functions |
Auto
Rotate, Grid View, Enlarged View (maximum 16 times),
Resize |
| Interface |
USB2.0
(High-Speed USB) Mini-B, Mass Storage*8,
Audio Output 1.0Vp-p (75Ω)/Video OUT |
| Power
Source |
Rechargeable
Battery (DB60)ื1, AAA Dry Alkaline Batteryื2, AAA
Nickel-Metal Hydride Batteryื2, AC Adapter (AC-4c
Optional) 3.8V |
| Battery
Consumption *9 |
Based
on CIPA Standard DB60 usage: approx. 350 pictures, AAA
alkaline battery usage: approx. 30 pictures*10 |
| Dimensions |
111.6mm(W)ื58.0mm(H)ื25.0mm(D)
excluding projecting parts |
| Weight |
Approx.
208g (excluding battery, SD memory card, and strap)
Accessories: approx. 30g (battery and strap) |
| Operating
Temperature |
0ฐC
to 40ฐC |
|
 |
| *1 |
The
shutter speed upper and lower limits vary depending on the
shooting mode and flash mode. |
| *2 |
The
picture quality mode that can be set varies depending on the
image size. |
| *3 |
A
JPEG file in Normal 640 or in Fine/Normal mode with the same
size as the RAW file is recorded at the same time. The DNG file
format is a RAW image file format and is the standard format of
Adobe Systems. |
| *4 |
The
estimated number of pictures that can be recorded or the
estimated recording time. |
| *5 |
The
maximum movie length that can be recorded at one time is either
90 minutes or 4 GB. |
| *6 |
Compatible
with DCF and DPOF. DCF is the abbreviation for "Design rule
for Camera File system," a JEITA standard. (Full
compatibility with other devices is not guaranteed.) |
| *7 |
When
the flash is set to [Flash Off]. |
| *8 |
Mass
storage mode is supported by Windows Me, 2000, XP, Vista, Mac
OS9.0-9.2.2, and Mac OSX10.1.2-10.5.2. |
| *9 |
The
number of remaining shots is based on the CIPA standard and may
vary depending on usage conditions. This is for reference only. |
| *10 |
Using
Panasonic AAA alkaline batteries. |
LCD viewfinder Major
Specifications
|
|
|
| Item |
Description |
| External
dimensions |
19.6mm
x 37mm x 39.4 mm (W x H x D), not including protruding
areas. |
| Weight |
Approx.
22 grams |
| Image
display area |
Ferro-electric
polarization-type liquid crystal Equivalent to approx.
201,000 dots |
| Lens |
4
elements in 3 groups |
| Picture
coverage |
100% |
| Parallax
compensation |
-5
~ +3 Dpt |
|
|
Windows
Vista |
Windows
XP |
Windows
2000/Me |
| 1.RICOH
Gate La |
 |
|
|
| 2.Irodio
Photo & Video Studio |
|
|
|
| 3.Acrobat
Reader |
x |
|
|
| 4.DeskTopBinder
Lite |
|
|
|
|
|
| * |
editing software for Macintosh not included. |
| * |
When
the version of Acrobat Reader included on the CD-ROM is used
with Windows Vista, a warning may display. If this occurs,
please download the latest version of Acrobat Reader from the
Adobe Systems website. |
|
Windows |
| Operating
system |
Windows
2000 Professional Service Pack4
Windows Me
Windows XP Home Edition Service Pack2/ Professional
Service Pack2
Windows Vista |
| CPU |
Windows
2000/Me/XP :PentiumฎIII500MHz or faster
Windows Vista :PentiumฎIII:1GHz or faster |
| Memory
Space |
Windows
2000 / Me / XP: 256MB or more
Windows Vista: 512MB or more |
| Hard
drive space (required for installation) |
160MB
or more |
| Display
Resolution |
1024
ื 768 pixels or greater |
| Display
colors |
65,000
colours or greater |
| CD-ROM
drive |
A
CD-ROM drive compatible with the above mentioned
computer. |
| USB
port |
A
USB port compatible with the above mentioned computer. |
|
|
| * |
Only
USB connection is available when connecting GX200 to a PC.
Serial connection is unavailable |
| * |
Valid
for system with preinstalled OS and USB port. |
| * |
GX200
is possible to use for Mac OS 9.0 to 9.22 and Mac OS X 10.1.2 to
10.5.2 by Mass Storage Connection. |
SD
Memory Card Storage Capacity
(Number of Images and Time) |
|
|
| Mode |
mode/
Recording pixels |
Built-in
memory |
512MB |
1GB |
2GB |
4GB |
8GB |
16GB |
| Still |
RAW
(12M) |
2 |
22 |
43 |
88 |
172 |
353 |
721 |
| F4000
(12M) |
11 |
107 |
207 |
421 |
826 |
1689 |
3448 |
| N4000
(12M) |
20 |
187 |
359 |
731 |
1436 |
2936 |
5992 |
| RAW3:2
(10M) |
2 |
25 |
49 |
99 |
195 |
400 |
817 |
| F3:2
(10M) |
13 |
121 |
234 |
476 |
935 |
1912 |
3902 |
| N3:2
(10M) |
23 |
210 |
405 |
819 |
1609 |
3289 |
6712 |
| RAW1:1
(10M) |
3 |
30 |
57 |
117 |
231 |
472 |
964 |
| F1:1
(9M) |
15 |
143 |
276 |
558 |
1097 |
2242 |
4576 |
| N1:1
(9M) |
27 |
249 |
479 |
975 |
1915 |
3915 |
7990 |
| N3264
(8M |
30 |
278 |
534 |
1078 |
2117 |
4327 |
8831 |
| N2592
(5M) |
48 |
436 |
839 |
1707 |
3352 |
6852 |
13983 |
| N2048
(3M) |
74 |
682 |
1313 |
2671 |
5247 |
10724 |
21885 |
| N1280
(1M) |
133 |
1208 |
2323 |
4726 |
9282 |
18973 |
38718 |
| N640
(VGA) |
497 |
4488 |
8632 |
15359 |
30159 |
61643 |
125793 |
| Text |
4000ื3000 |
20 |
187 |
359 |
731 |
1436 |
2936 |
5992 |
| 2048ื1536 |
74 |
682 |
1313 |
2671 |
5247 |
10724 |
21885 |
| Movie |
640ื480
(15frames/sec.) |
122 |
1219 |
242 |
4813 |
9440" |
19330 |
39453 |
| 640ื480
(30frames/sec.) |
41 |
614 |
1159 |
2423 |
4754 |
9755 |
19949 |
| 320ื240
(15frames/sec.) |
240 |
245 |
4619 |
9411 |
18457 |
3782 |
77125 |
| 320ื240
(30frames/sec.) |
122 |
1219 |
242 |
4813 |
9440 |
19330 |
39453 |
|
| * |
Number
of recordable pictures and recordable time may vary depending on
the manufacturer of an SD memory card and shooting conditions. |
| * |
Average
number of images and time. |
|
|
