Ricoh GXR Digital Camera
A brand new
Digital Camera system with interchangeable lenses, with a difference,
each individual lens come with the sensor built into the rear of the
lens.
|

|
GR LENS
A12 50mm F2.5 MACRO |
|
| Item |
|
Specifications |
| Effective
pixels |
|
Approximately
12.30 million |
| Image
sensor |
|
23.6×15.7mm
CMOS (total pixels: 12.90 million) |
| Lens |
Focal
length |
|
33 mm (35 mm
format equivalent: 50mm) |
| Aperture(f-number) |
|
f/2.5 –
f/22(ND filter used for apertures of f/22 in auto shooting mode) |
| Focus
range |
|
Normal
shooting: Approx. 30 cm –infinity, Macro shooting: Approx. 7 cm -
infinity (maximum magnification 1/2x) |
| Construction |
|
9 elements
in 8 groups |
| Zoom |
|
4.0×
digital zoom (3.6x for movies), 5.9× auto resize zoom (VGA) |
| ISO
sensitivity (Standard Output Sensitivity) |
|
AUTO,
AUTO-HI, ISO200 / ISO400 / ISO800 / ISO1600 / ISO3200 |
| Shutter
speed |
|
Photographs:
1/3200 – 180 sec. Movies: 1/30 – 1/2000 sec. |
| Continuous
mode (Picture Size: RAW) |
|
Noise
Reduction off: 4 pictures (ISO800 and higher) |
|
Continuous
shooting capacity |
|
Photographs:
4288 × 2416, 3776 × 2832, 4288 × 2848, 2848 × 2848, 3456 × 1944,
3072 × 2304, 3456 × 2304, 2304 × 2304, 2592 × 1944, 2048 × 1536,
1280 × 960, 640 × 480
Movies: 1280 × 720, 640
× 480, 320 × 240 |
| Battery
life |
|
Based on
CIPA standard, DB-90: approx. 320 shots |
|
Dimensions
(W × H × D) |
|
Camera
unit only:68.7 mm × 57.9 mm × 38.6 mm (excluding projections) When
mounted on the camera body:113.9 mm × 70.2 mm × 44.4 mm (excluding
projections) |
| Weight |
|
Camera
unit only: Approx. 263g Mounted on camera body: Approx. 423g (not
including battery, SD memory card, or neck
strap), accessory weight: approx. 23g (battery, strap) |

| RICOH
LENS S10 24-72mm F2.5-4.4 |
|
| Item |
|
Specifications |
| Effective
pixels |
|
Approximately
10.0 million |
| Image
sensor |
|
|
| Lens |
Focal
length |
|
5.1mm
– 15.3mm (35 mm format equivalent: 24-72 mm) |
| Aperture
(f-number) |
|
f/2.5
– f/4.4 |
| Focus
range |
|
Normal
shooting: Approx. 30 cm to infinity:Macro shooting: Approx. 1 cm to
infinity (wide angle); Approx. 4 cm to infinity (telephoto); approx. 1
cm to infinity (zoom macro) |
| Construction |
|
11
elements in 7 groups |
| Zoom |
|
3.0
× optical zoom; 4.0 × digital zoom; approx. 5.7 × auto resize zoom
(VGA) |
| ISO
sensitivity (Standard Output Sensitivity) |
|
Auto,
Auto-Hi, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200 |
| Shutter
speed |
|
Photographs:
1/2000 – 180 sec. Movies: 1/30 – 1/2000 sec. |
| Continuous
mode (Picture Size: RAW) |
|
Noise
Reduction off: 5 pictures (under ISO800) |
|
Continuous
shooting capacity
|
|
Photographs:
3648 × 2048, 3648 × 2736, 3648 × 2432, 2736 × 2736, 3264 × 1840,
3264 × 2448, 3264 × 2176, 2448 × 2448, 2592 × 1944, 2048 × 1536,
1280 × 960, 640 × 480
Movies: 640
× 480, 320 × 240 |
| Battery
life |
|
Based on
CIPA standard DB-90: approx. 410 shots |
|
Dimensions
(W × H × D) |
|
68.7
mm × 57.9 mm × 38.6 mm (excluding projections) When mounted on the
camera body: 113.9 mm × 70.2 mm × 44.4 mm
(excluding projections) |
| Weight |
|
Camera unit
only: Approx. 161g Mounted on camera body: Approx. 325g (not including
battery, SD memory card, or neck strap), accessory weight: approx. 23g
(battery, strap) |

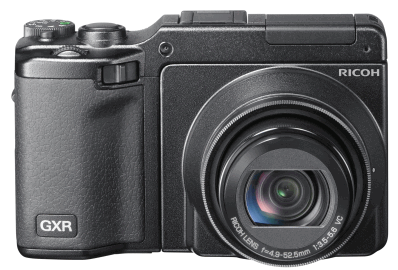

| GXR
+ 28~300mm Lens |

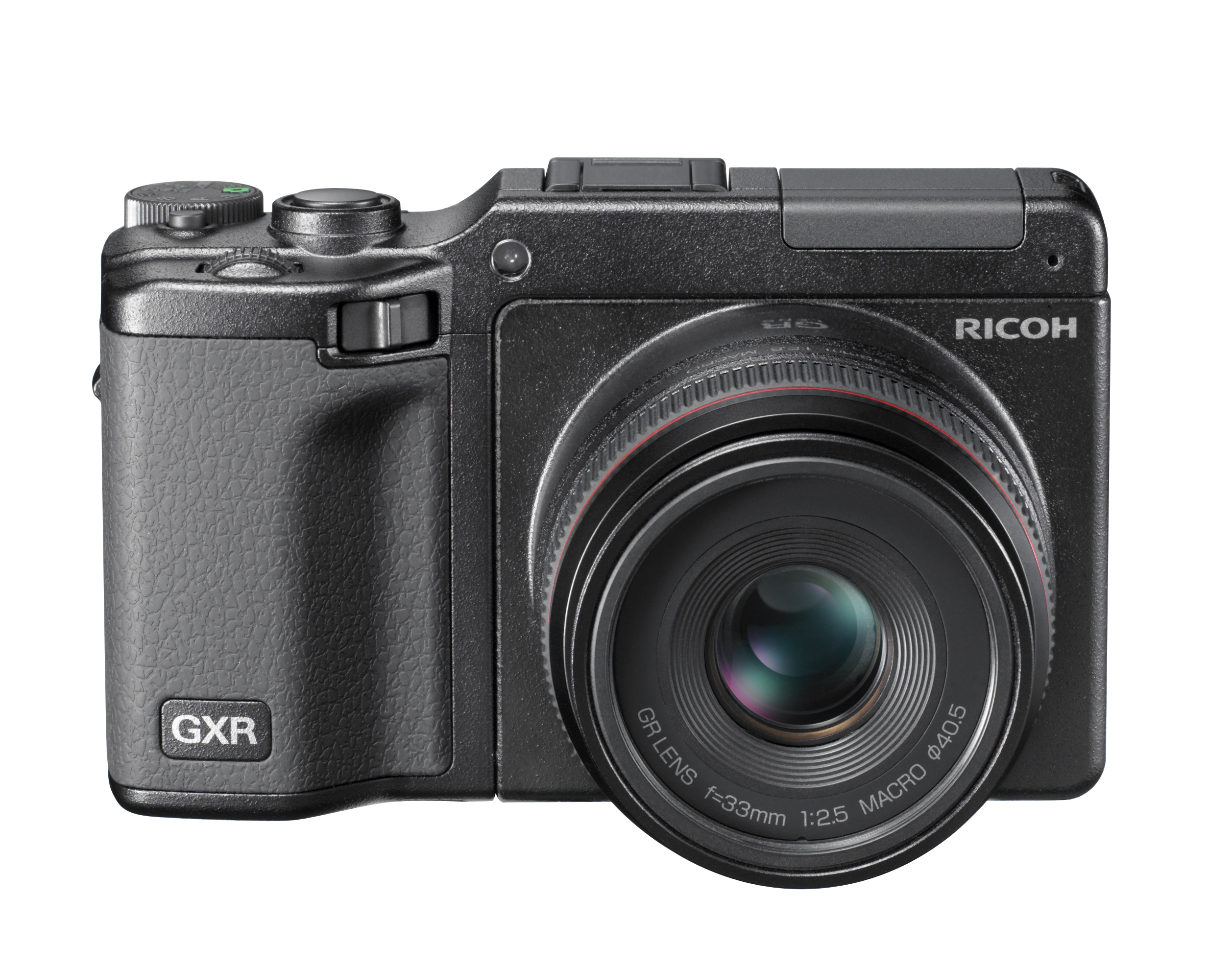

GXR
+ 50mm Lens |

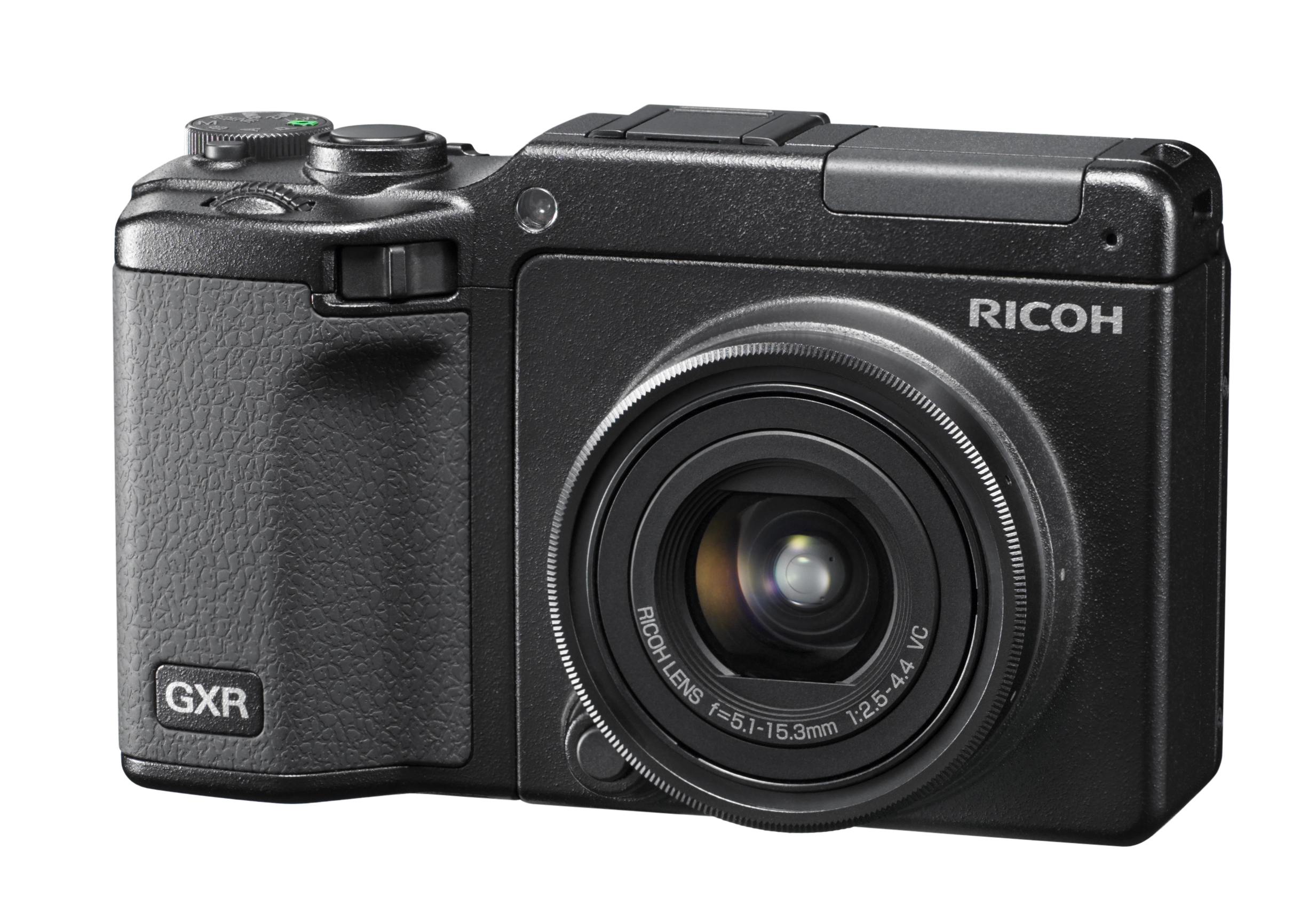

GXR
+ 24~72 lens |
|
|

|

|
|
|
|

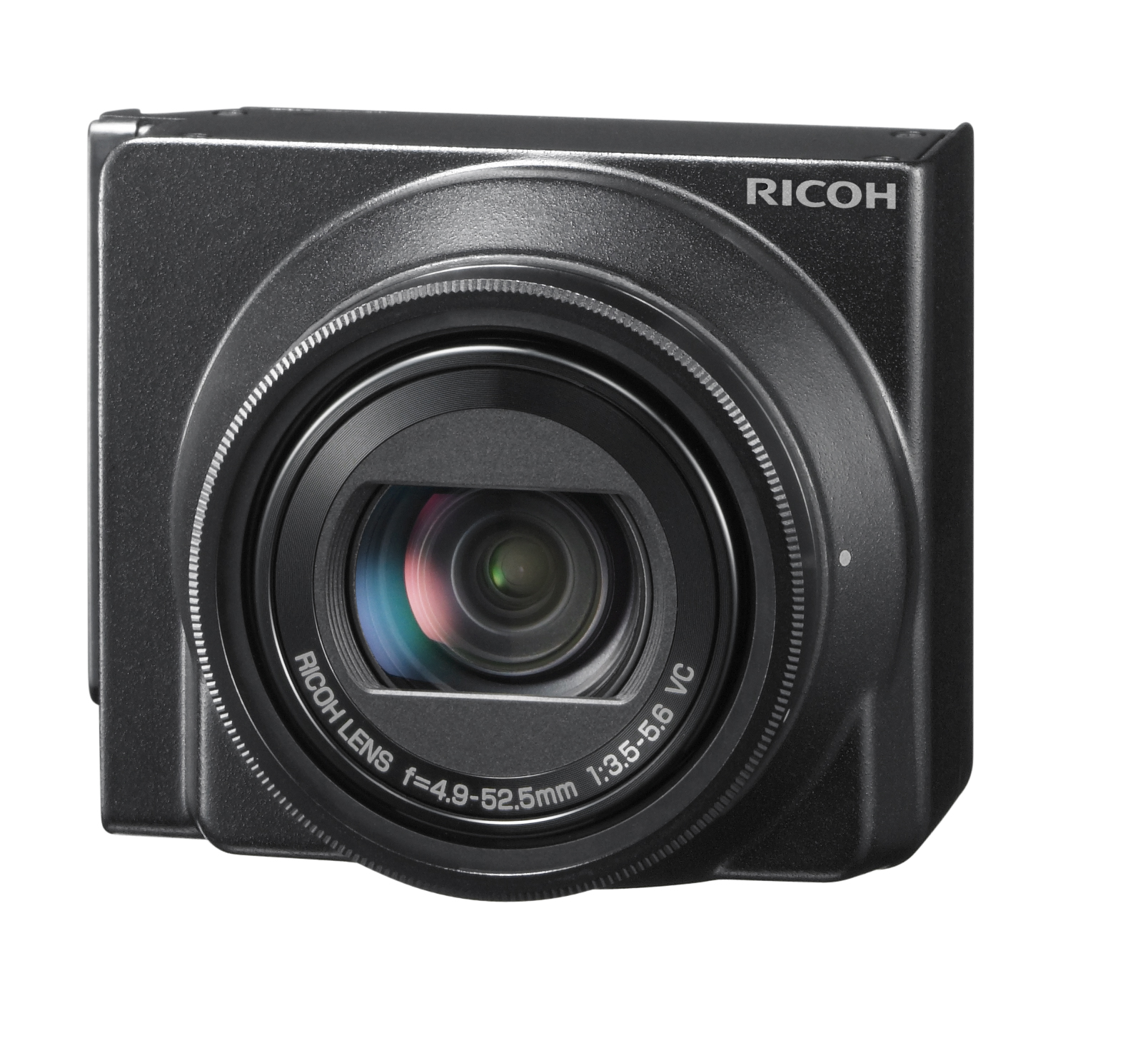

| 28~300
Lens Module |

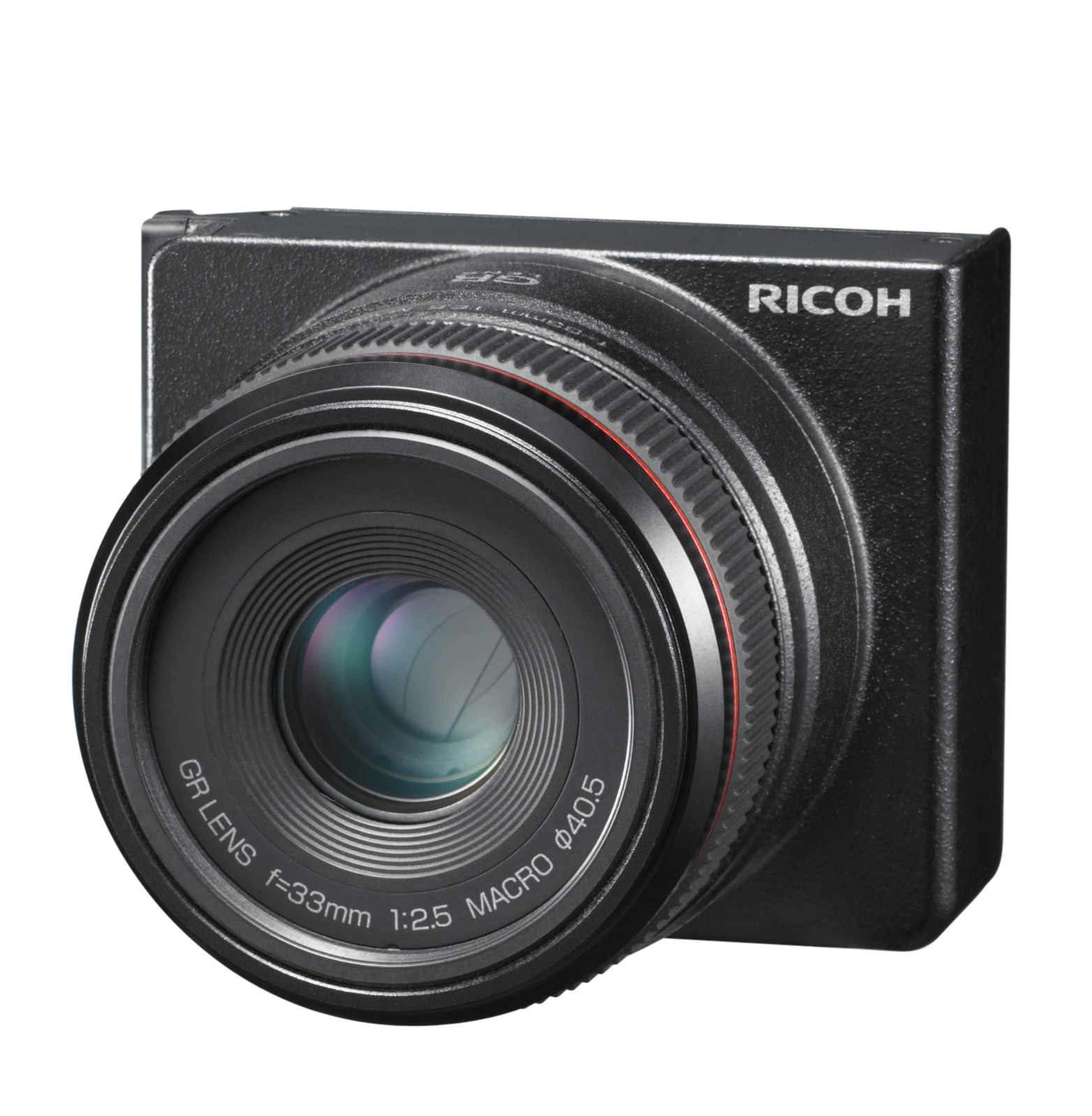

50mm
Lens Module |

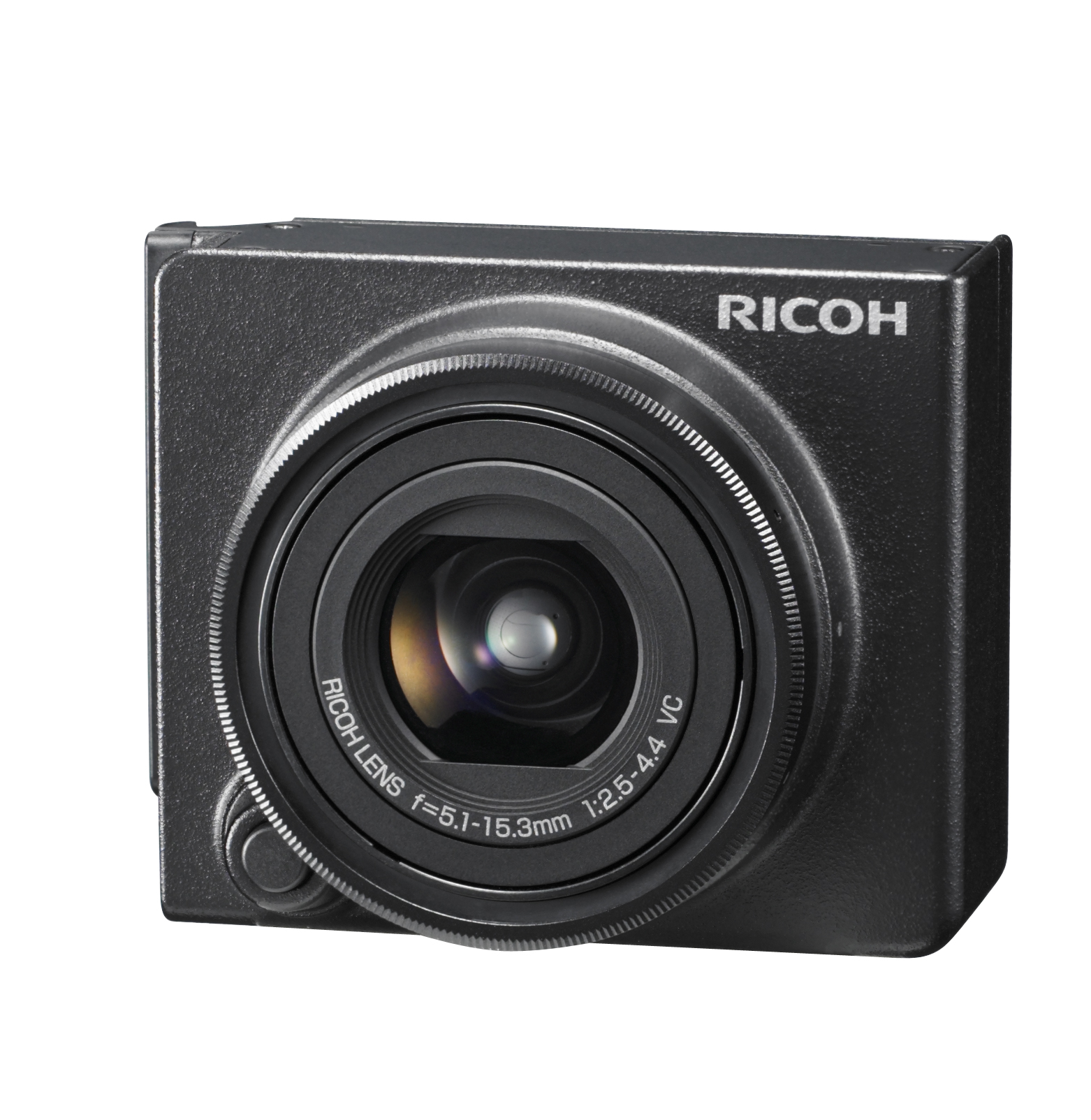

24~72
Lens Module |
|
|
_MEDIUM.gif)
|
_MEDIUM.gif)
|
|
|
|

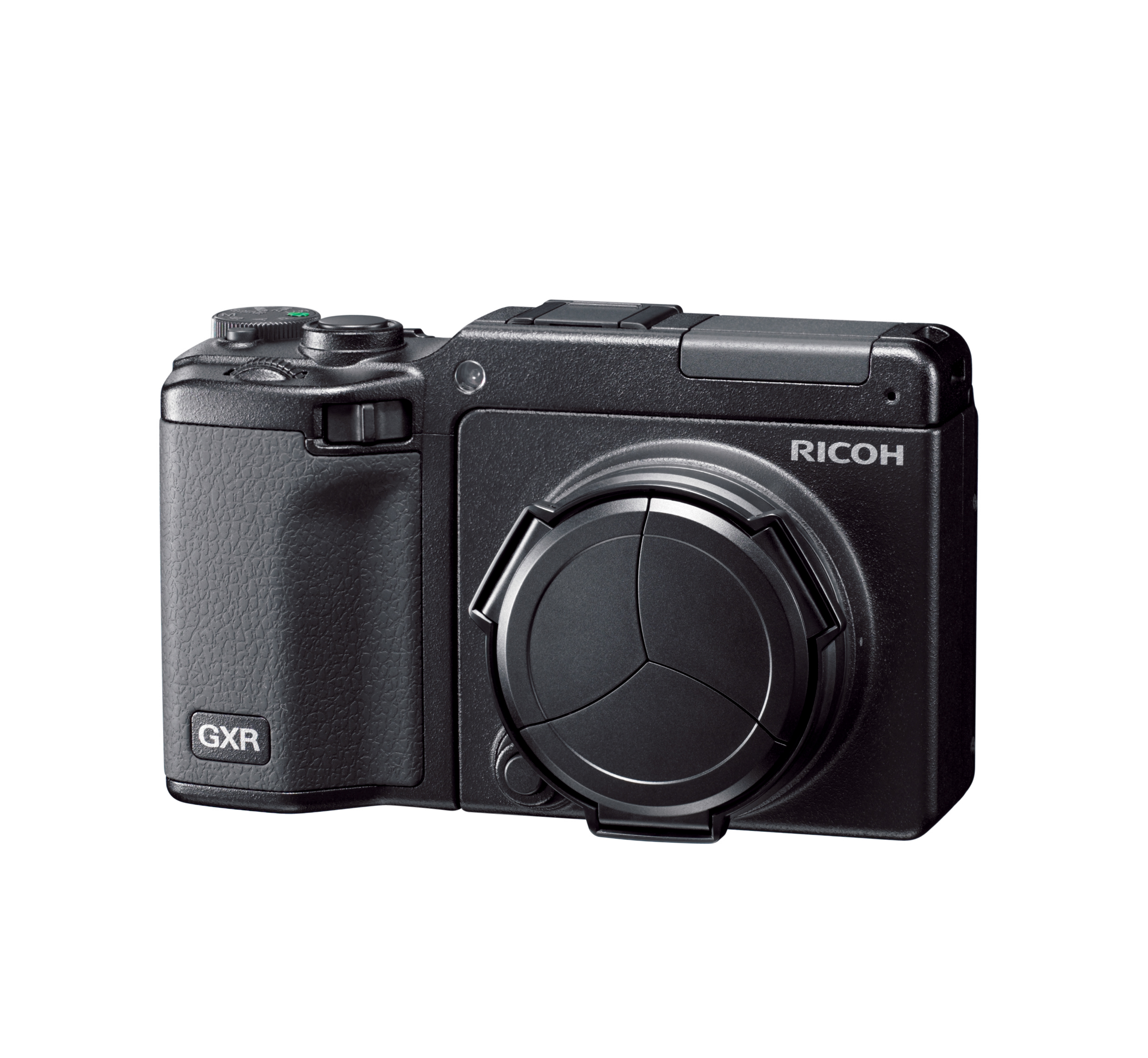

| GXR
lens cap closed |

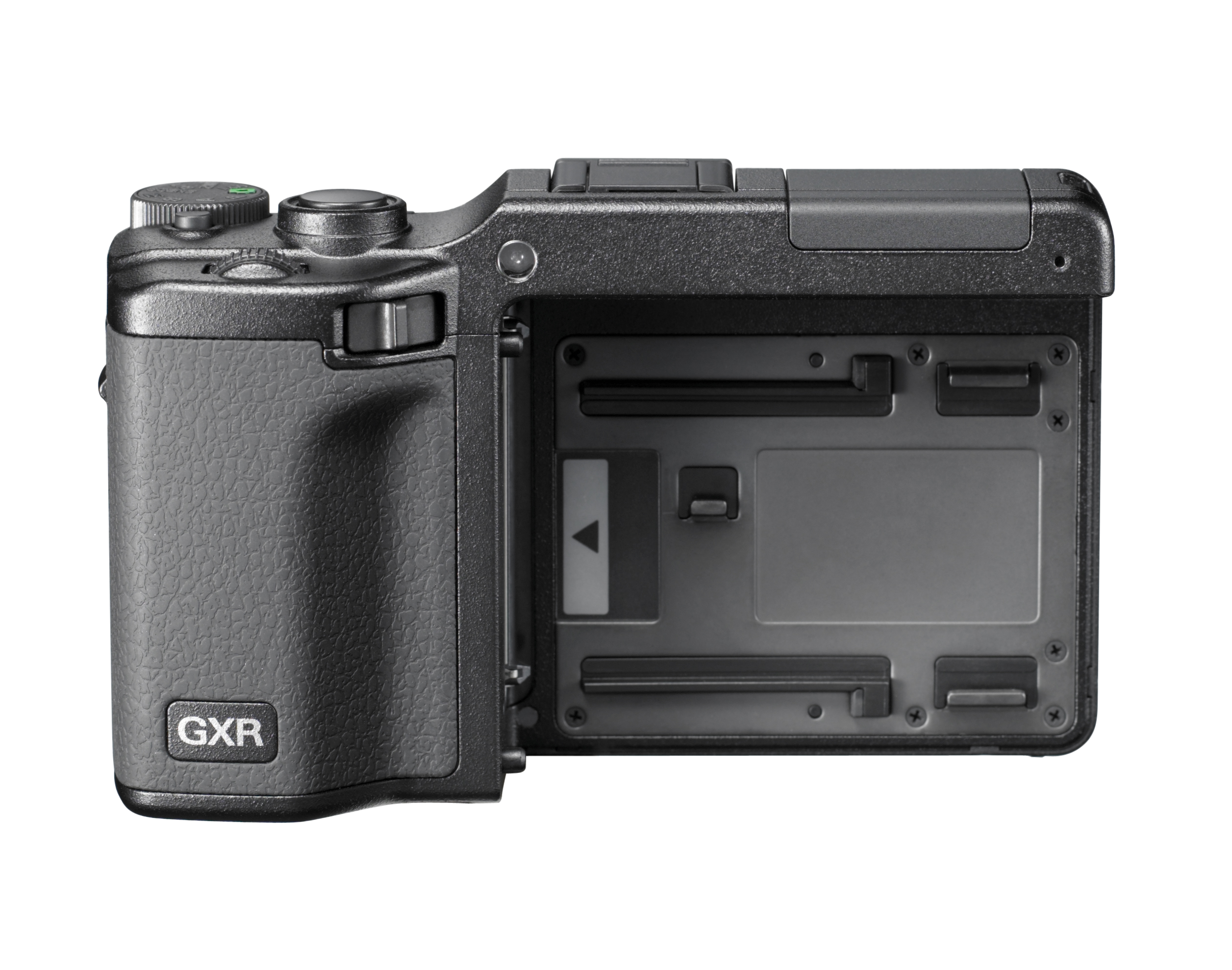

GXR
with no lens |

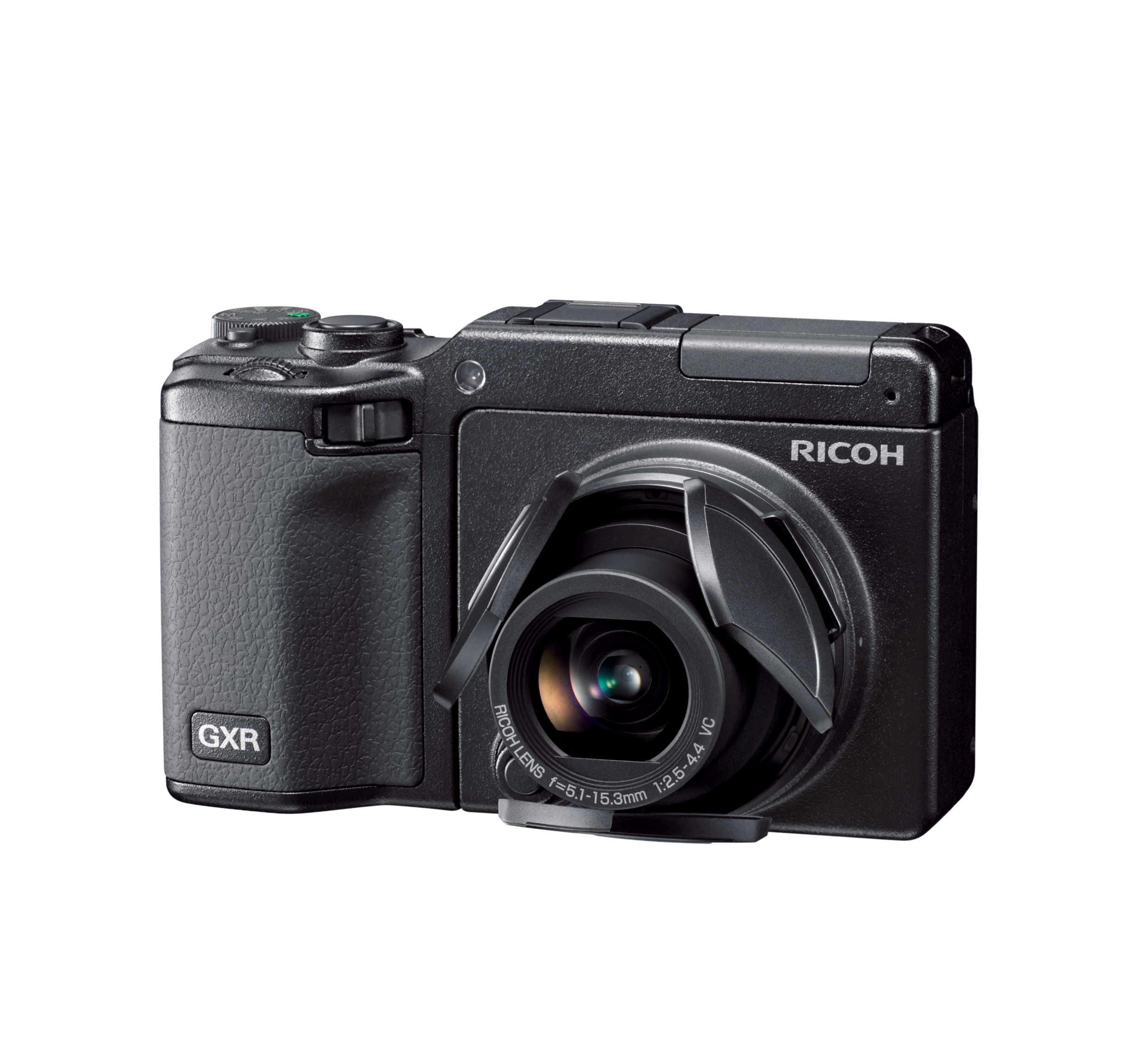

GXR
lens cap open |
|

|

|

|
|
|
|

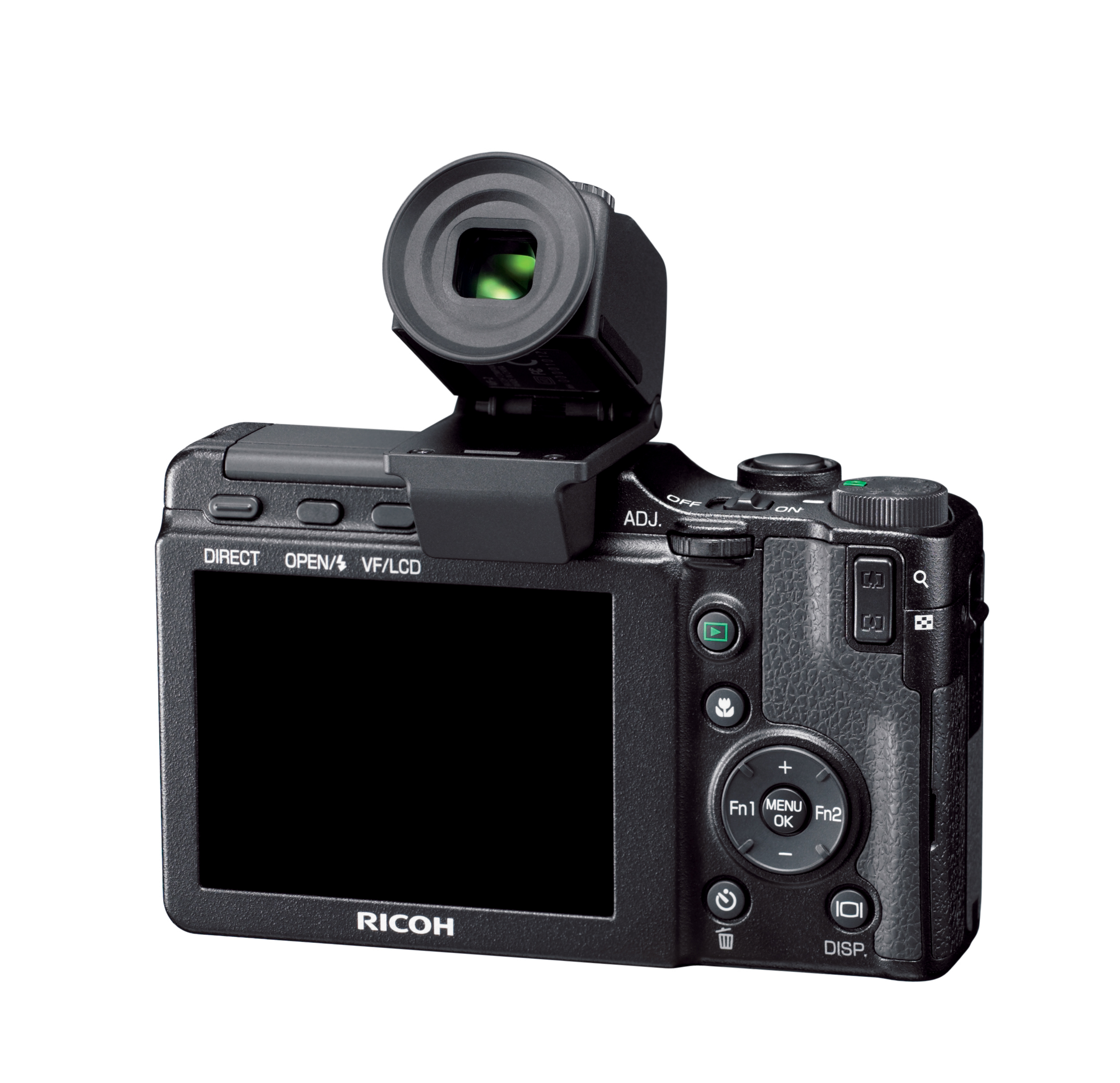

| GXR
Back with Viewfinder |

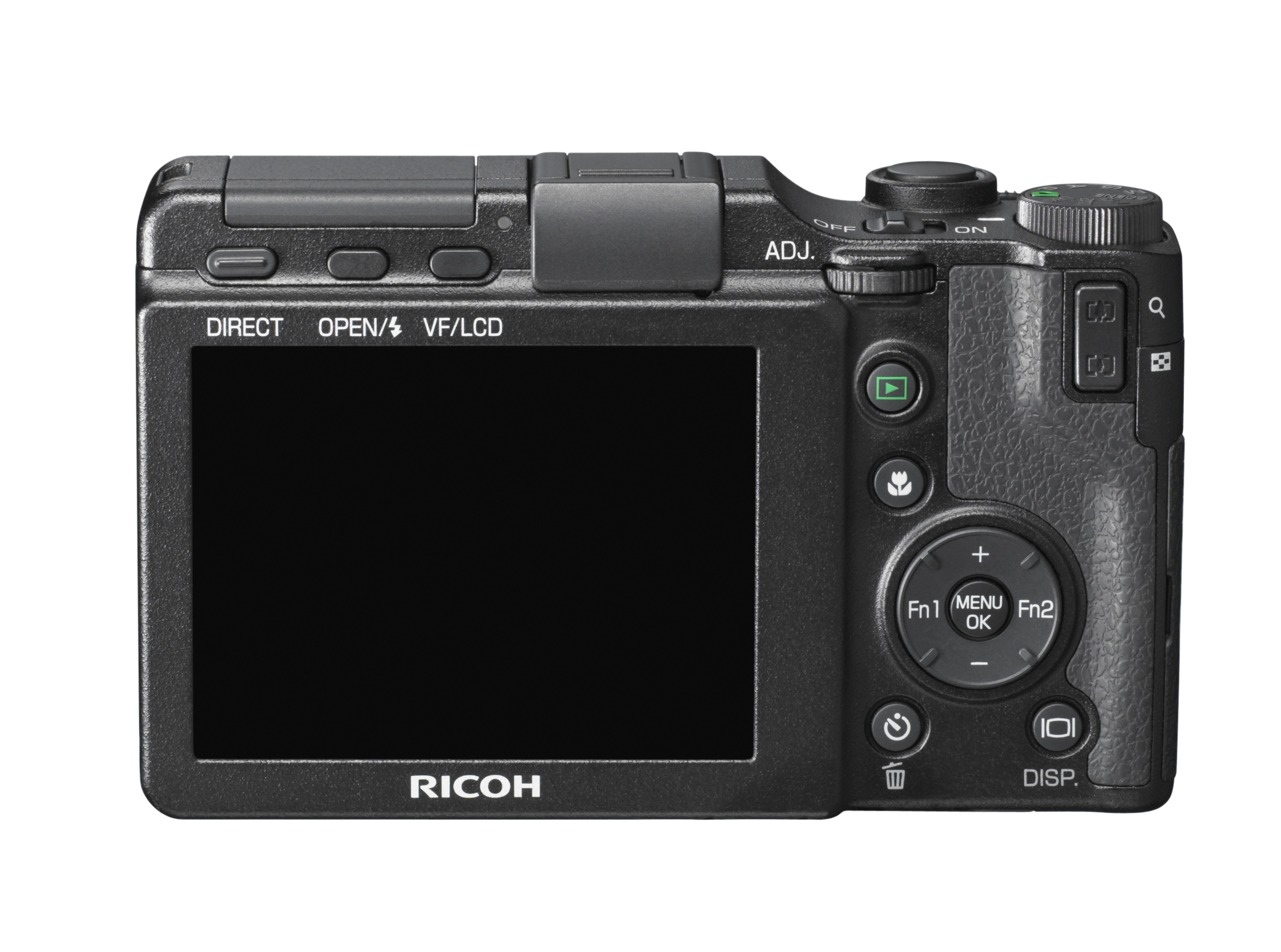

GXR
Back |

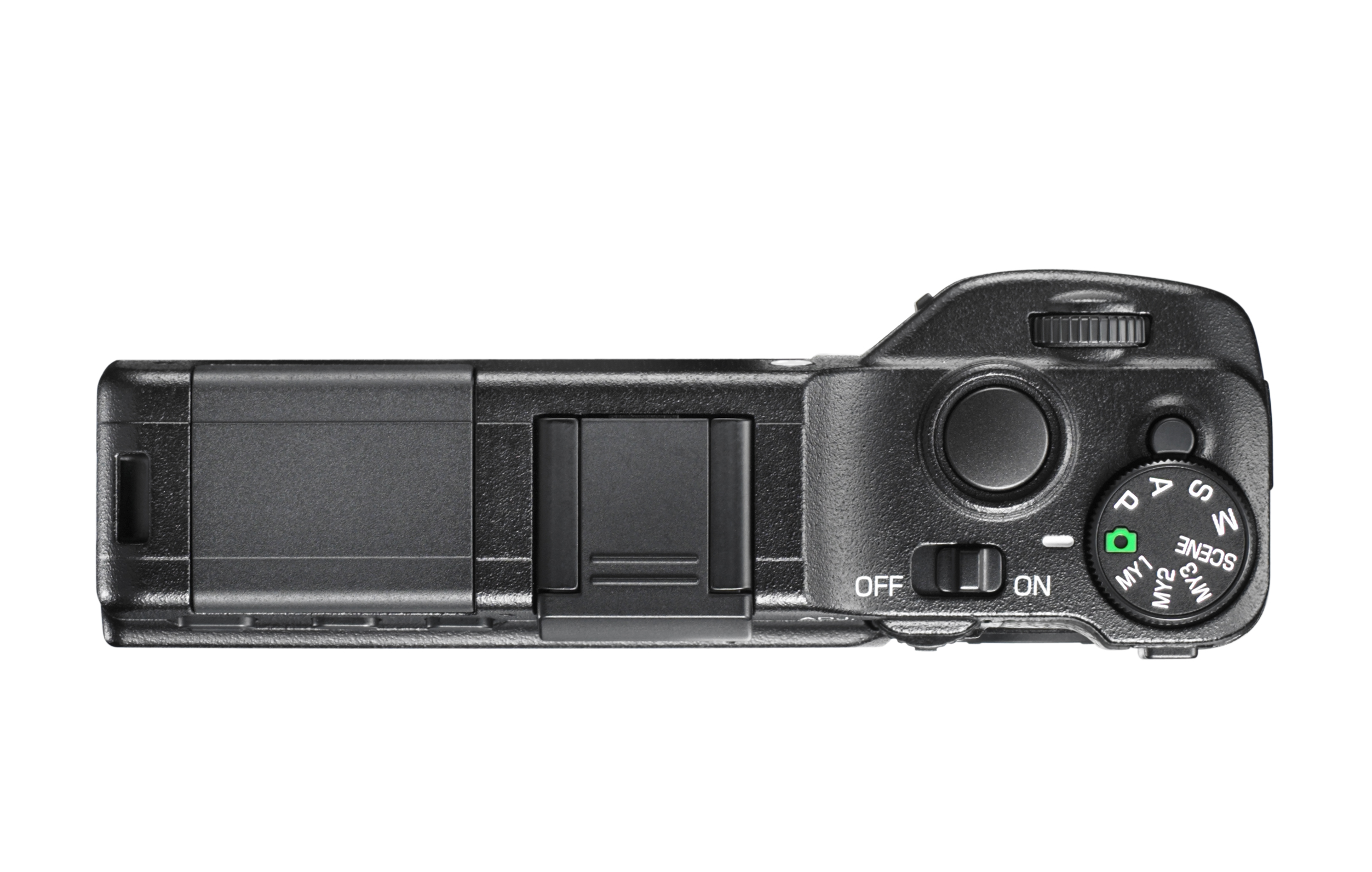

GXR
TOP (no lens) |
|

|

|

|
|

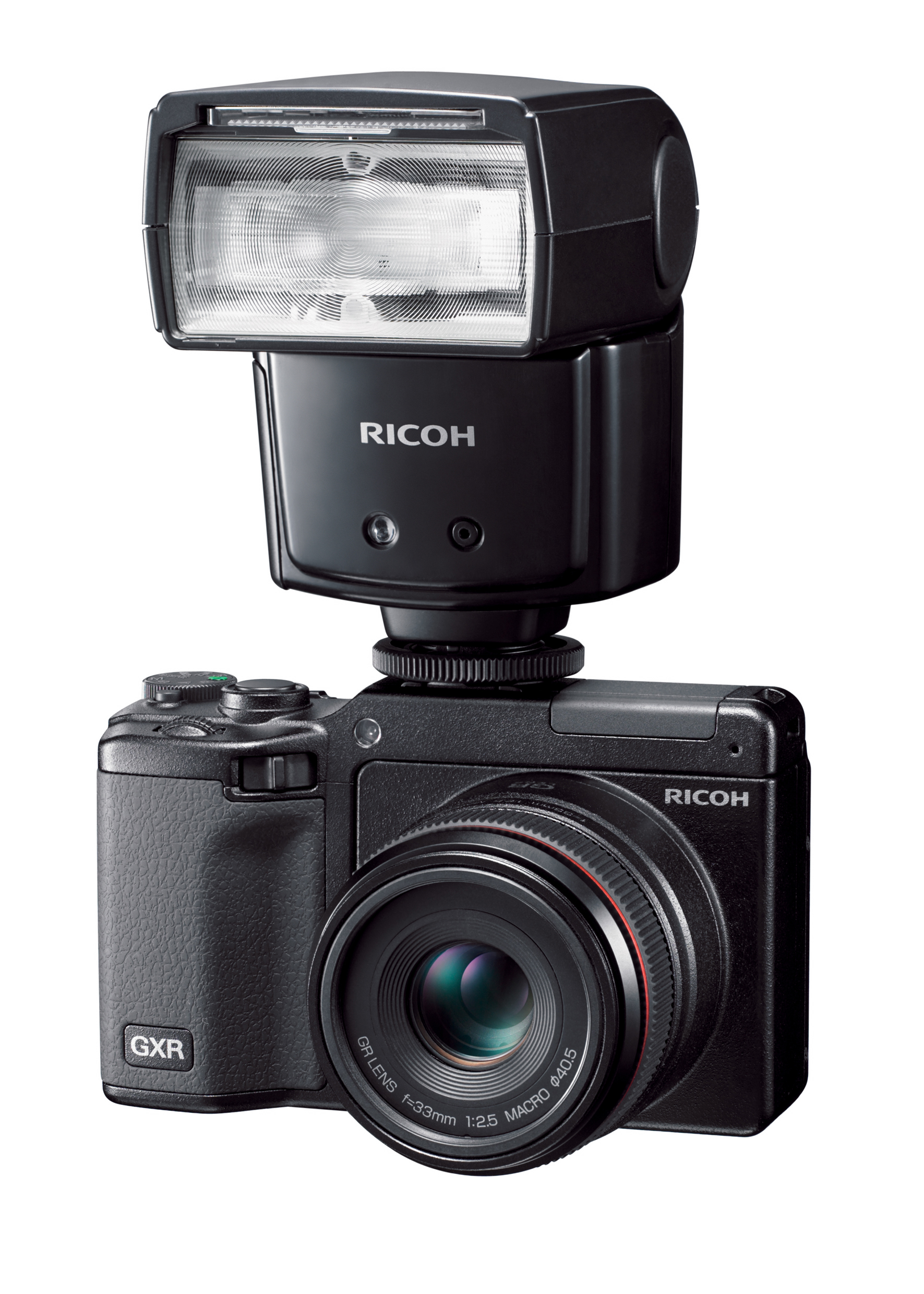

GXR
50mm and Flash
|
|
|
|
|
|

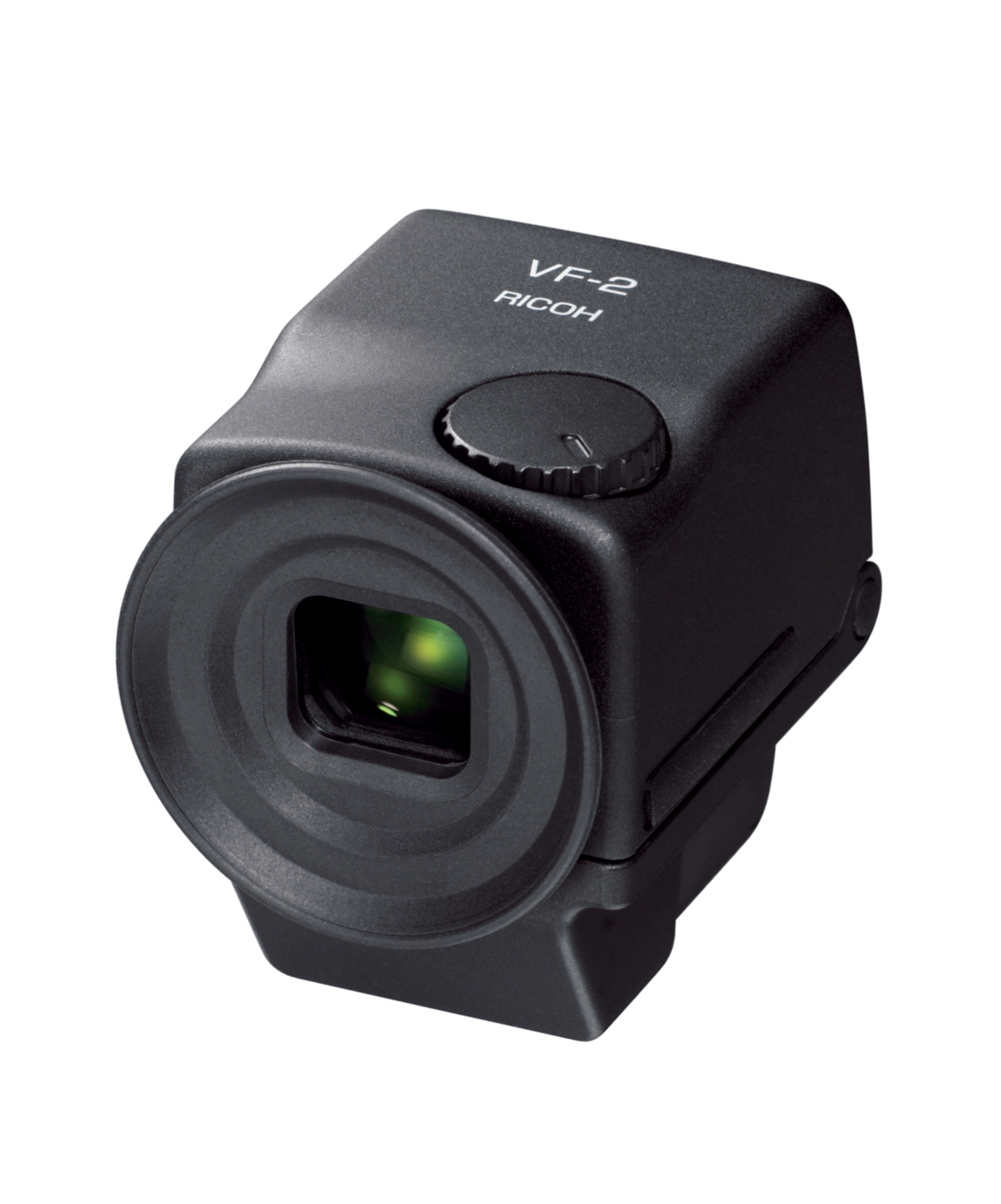

| Electronic
Viewfinder |

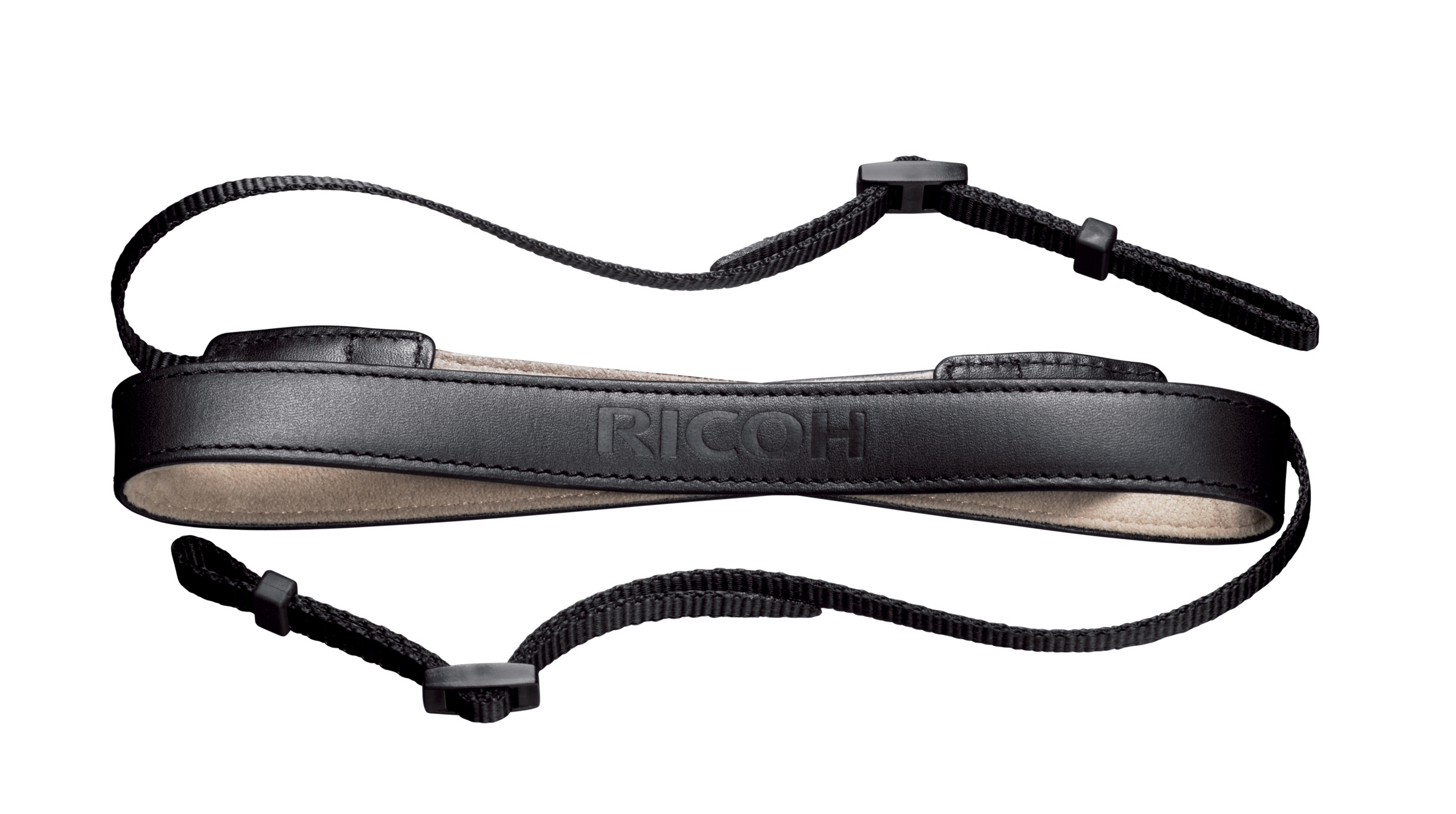

Strap |

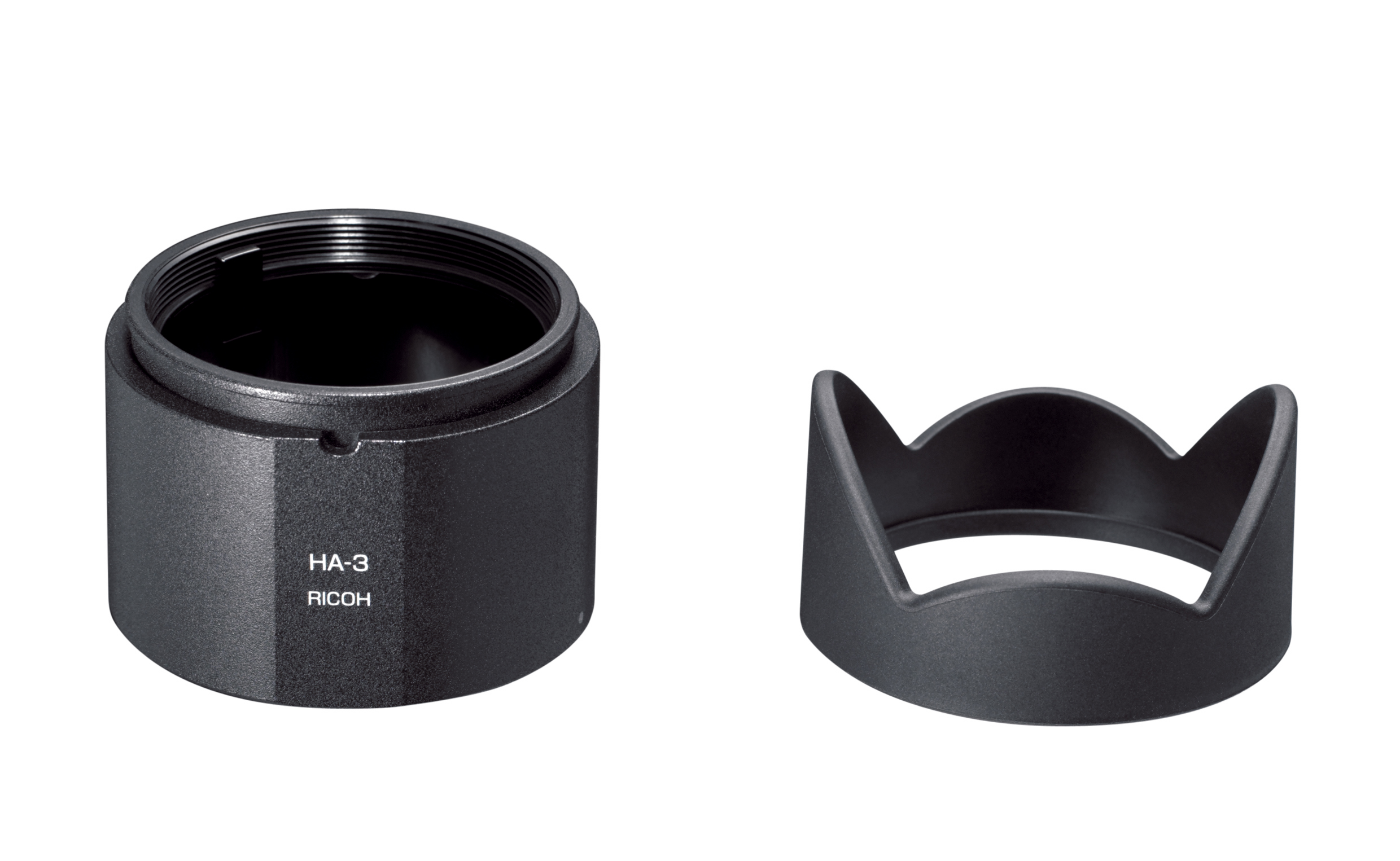

HA3
& HOOD |

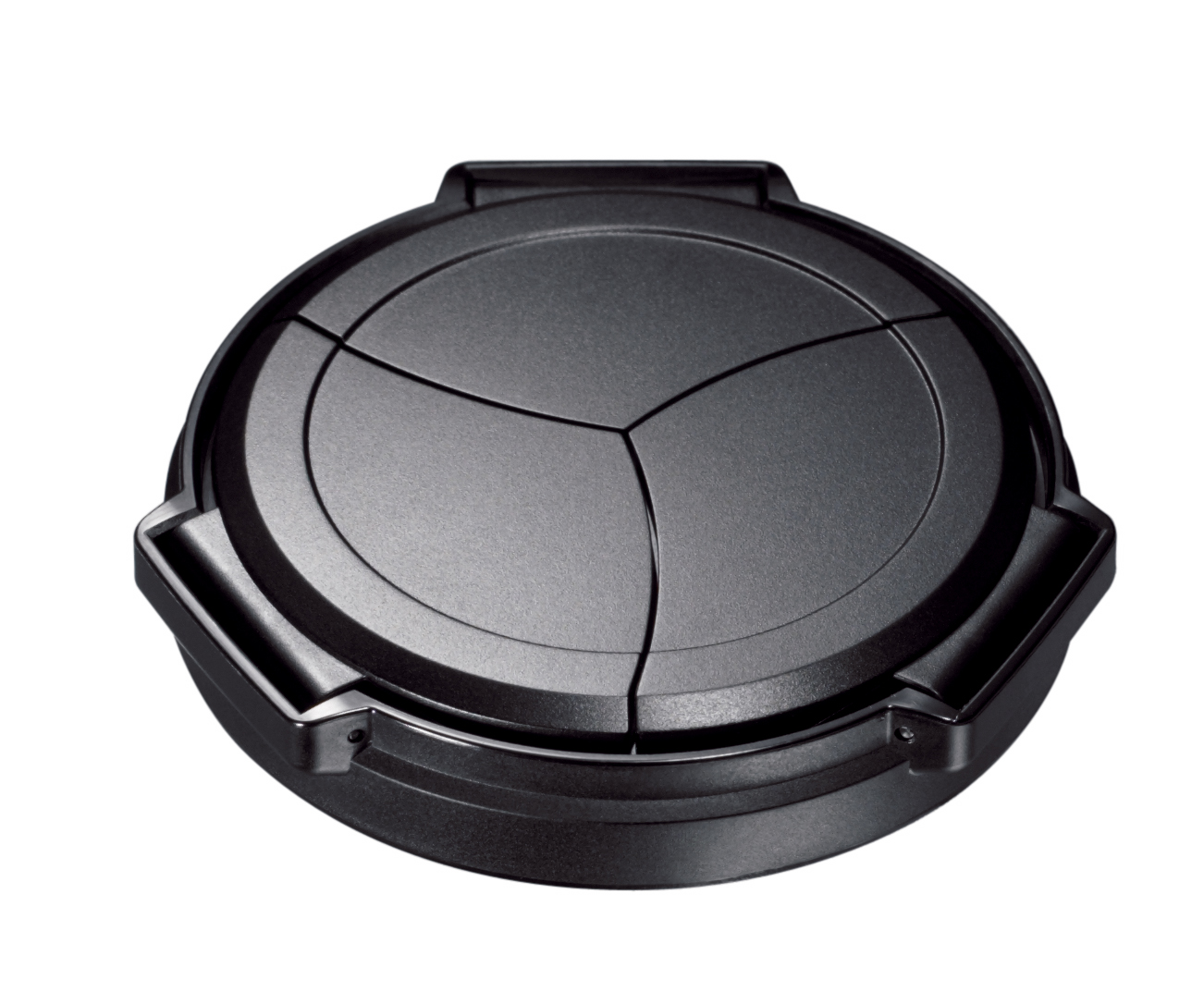

Lens
Cap |
_MEDIUM.gif) |
_MEDIUM.gif) |
_MEDIUM.gif) |
_MEDIUM.gif) |
|
